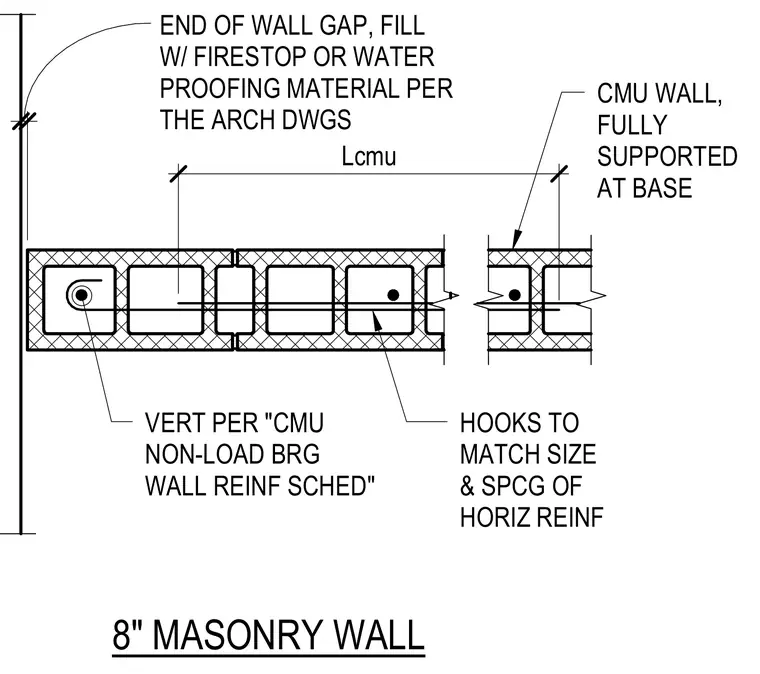

An eight-inch masonry wall features vertical reinforcement sized per the CMU non-load bearing wall reinforcement schedule. Horizontal reinforcement hooks match the size and spacing of the horizontal reinforcing. A gap at the end of the wall is filled with firestop or waterproofing material per the architectural drawings. The CMU wall is fully supported at the base.
1/2" CMU WALL, FULLY SUPPORTED AT BASE END OF WALL GAP, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 8" MASONRY WALL 29" Lcmu HOOKS TO MATCH SIZE & SPCG OF HORIZ REINF
