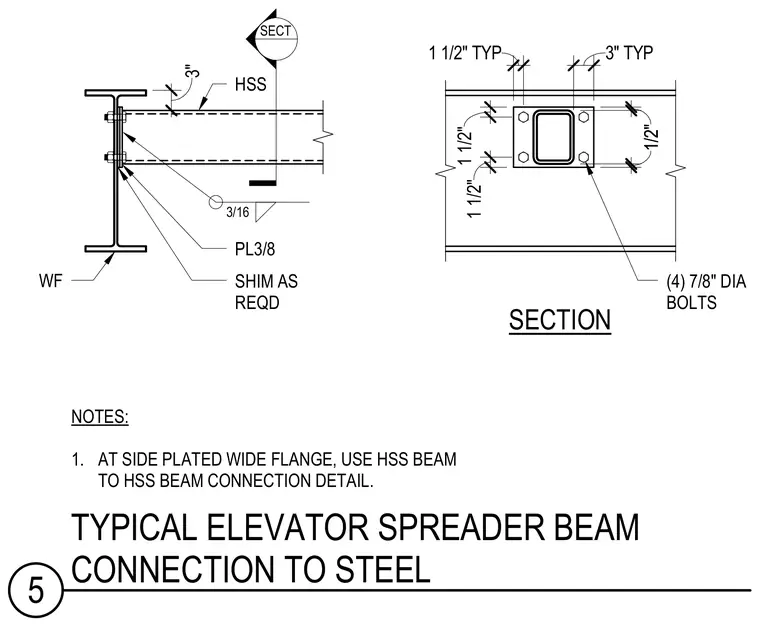

An elevator spreader beam framed into a wide flange steel column using a three-eighths-inch connection plate welded with a three-sixteenths-inch fillet weld and secured with four seven-eighths-inch diameter bolts. Shims are inserted as required between the members to adjust tolerances. A note specifies that at side plated wide flange conditions, an HSS beam to HSS beam connection detail must be used.
SECT SECTION PL3/8 SHIM AS REQD HSS WF 3/16 (4) 7/8" DIA BOLTS 1 1/2" 1 1/2" 1 1/2" TYP 3" TYP 1/2" 1/2" 3" NOTES: 1. AT SIDE PLATED WIDE FLANGE, USE HSS BEAM TO HSS BEAM CONNECTION DETAIL. 5 TYPICAL ELEVATOR SPREADER BEAM CONNECTION TO STEEL
