Metal Deck Support at Columns

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Decks Connections / Plates Roof / Floor Openings

Connections

Welded Connection Deck Attachment

About this detail

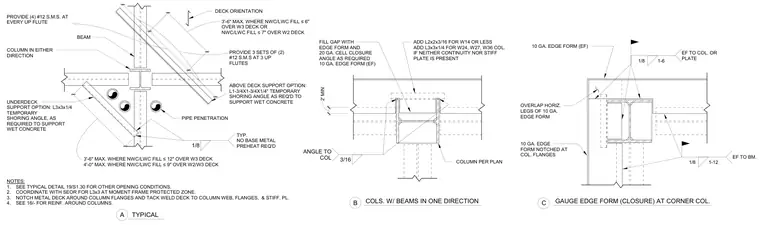

Conditions for metal deck support and edge forms around structural steel columns. The assembly incorporates notched metal deck fitted around column flanges and tack welded to the column web, flanges, and stiffener plates with one-eighth inch fillet welds. Additional support options include temporary shoring angles such as L3x3x1/4 or L1-3/4x1-3/4x1/4 to support wet concrete. Edge forms utilize ten-gauge material with twenty-gauge cell closure angles and sheet metal screws at up flutes, supplemented by angle sizes like L2x2x3/16 or L3x3x1/4 depending on column size.
