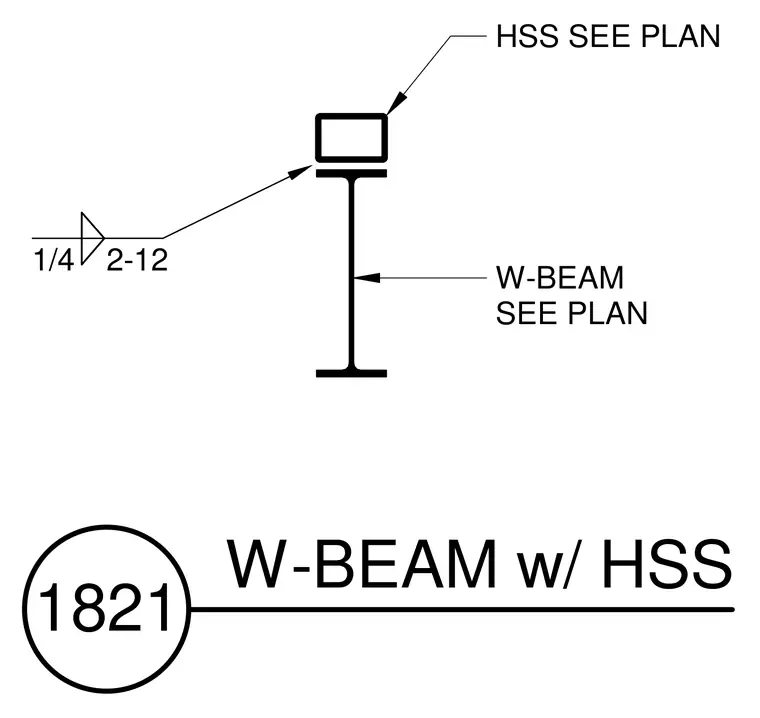

A wide-flange beam sized per plan connects beneath a hollow structural section member sized per plan. The connection is secured with a one-quarter-inch fillet weld.
