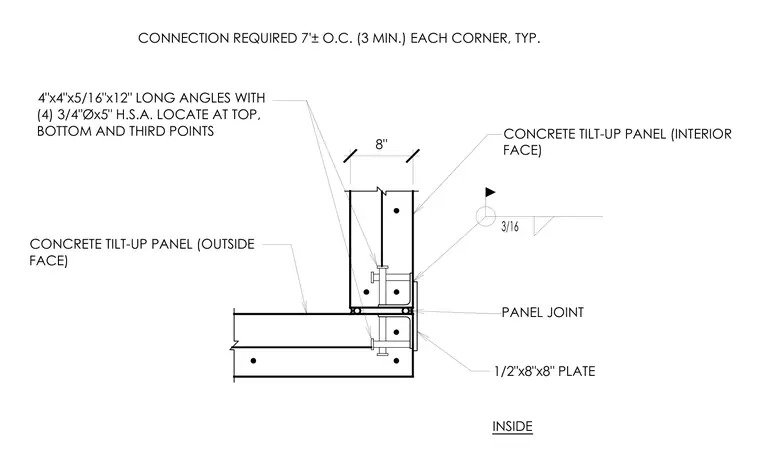

Concrete tilt-up wall panels meet at a corner joint tied together with four-inch by four-inch by five-sixteenths-inch by twelve-inch long structural steel angles. Each angle is secured with four three-quarters-inch diameter by five-inch long headed stud anchors located at the top, bottom, and third points of the panel. A one-half-inch by eight-inch by eight-inch steel plate bridges the panel joint on the interior face, welded with a three-sixteenths-inch fillet weld.
8" 4"x4"x5/16"x12" LONG ANGLES WITH [+6$/2&$7($7723 BOTTOM AND THIRD POINTS CONCRETE TILT-UP PANEL (OUTSIDE FACE) 1/2"x8"x8" PLATE PANEL JOINT &211(&7,215(48,5(' 2&0,1($&+&251(57<3 CONCRETE TILT-UP PANEL (INTERIOR FACE) INSIDE
