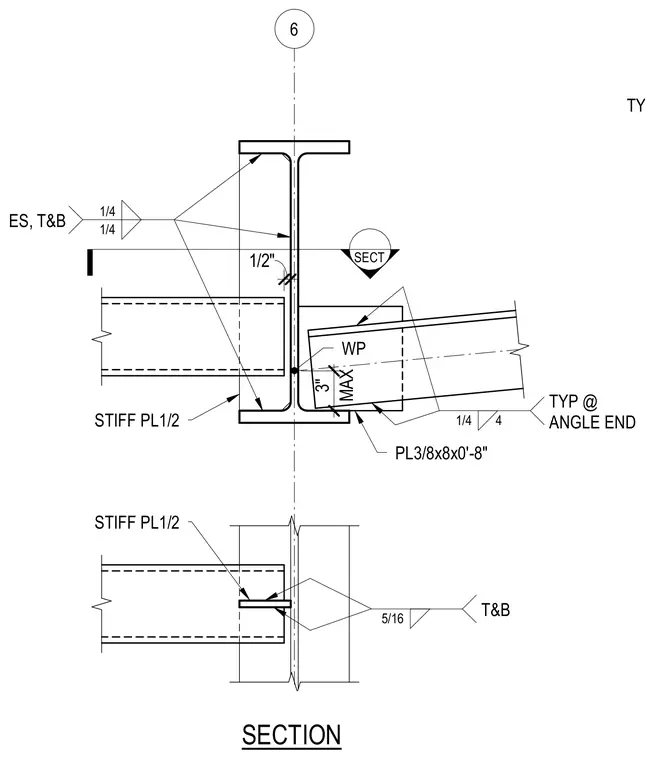

An angle member terminates at a structural steel column or beam web with a 3/8-inch by 8-inch by 0-foot-8-inch connection plate. A 1/2-inch stiffener plate welded with a quarter-inch fillet weld reinforces the web assembly. A maximum 3-inch dimension is maintained at the work point. Fillet welds of quarter-inch and five-sixteenths sizes secure the connection components on top and bottom.
SECT 6 SECTION T&B 5/16 1/2" ES, T&B 1/4 1/4 STIFF PL1/2 PL3/8x8x0'-8" TYP STIFF PL1/2 MAX 3" WP TYP @ ANGLE END 4 1/4
