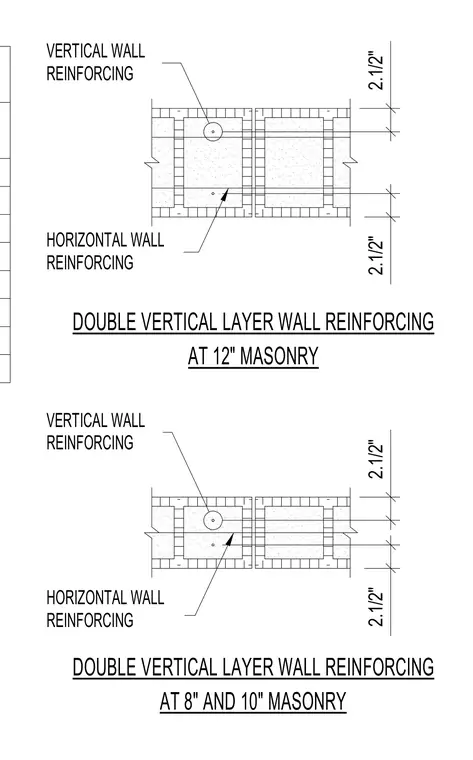

Double vertical layer wall reinforcing for 8-inch, 10-inch, and 12-inch masonry walls. Vertical wall reinforcing bars are positioned with specified clearances of two and one-half inches, alongside horizontal wall reinforcing.
REINFORCING VERTICAL WALL REINFORCING HORIZONTAL WALL AT 8" AND 10" MASONRY REINFORCING VERTICAL WALL REINFORCING HORIZONTAL WALL DOUBLE VERTICAL LAYER WALL REINFORCING AT 12" MASONRY DOUBLE VERTICAL LAYER WALL REINFORCING 2.1/2" 2.1/2" 2.1/2" 2.1/2"
