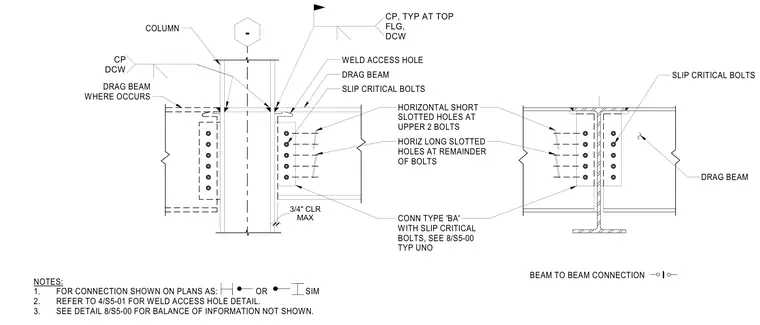

A drag beam connects to a column and another beam utilizing slip-critical bolts. Horizontal short slotted holes occur at the upper two bolts and horizontal long slotted holes at the remaining bolt locations. A maximum three-quarter-inch clearance is maintained at the column face. Weld access holes and specific connection types with slip-critical bolts are specified as indicated in the notes and accompanying details.
MAX 3/4" CLR COLUMN CP DCW DRAG BEAM WHERE OCCURS CP, TYP AT TOP FLG, DCW WELD ACCESS HOLE DRAG BEAM HORIZONTAL SHORT SLOTTED HOLES AT UPPER 2 BOLTS HORIZ LONG SLOTTED HOLES AT REMAINDER OF BOLTS CONN TYPE 'BA' WITH SLIP CRITICAL BOLTS, SEE 8/S5-00 TYP UNO DRAG BEAM NOTES: 1. FOR CONNECTION SHOWN ON PLANS AS: OR SIM 2. REFER TO 4/S5-01 FOR WELD ACCESS HOLE DETAIL. 3. SEE DETAIL 8/S5-00 FOR BALANCE OF INFORMATION NOT SHOWN. BEAM TO BEAM CONNECTION - SLIP CRITICAL BOLTS SLIP CRITICAL BOLTS
