The concrete slab construction joint is positioned within the middle third of the deck span between supporting steel beams and columns. The joint separates the first pour from the second pour across the metal deck. Welded wire reinforcement requires a two-panel lap with a one-foot minimum overlap at the joint.

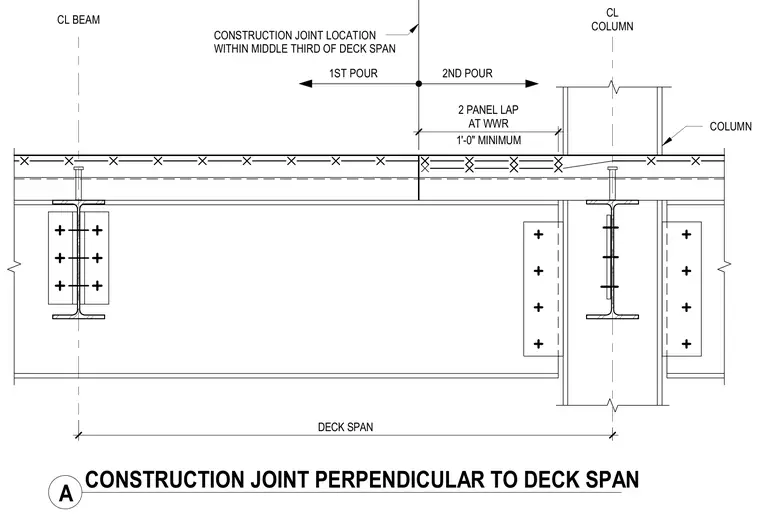

CL BEAM CL COLUMN 1ST POUR 2ND POUR CONSTRUCTION JOINT LOCATION WITHIN MIDDLE THIRD OF DECK SPAN DECK SPAN COLUMN 1'-0" MINIMUM 2 PANEL LAP AT WWR A CONSTRUCTION JOINT PERPENDICULAR TO DECK SPAN
