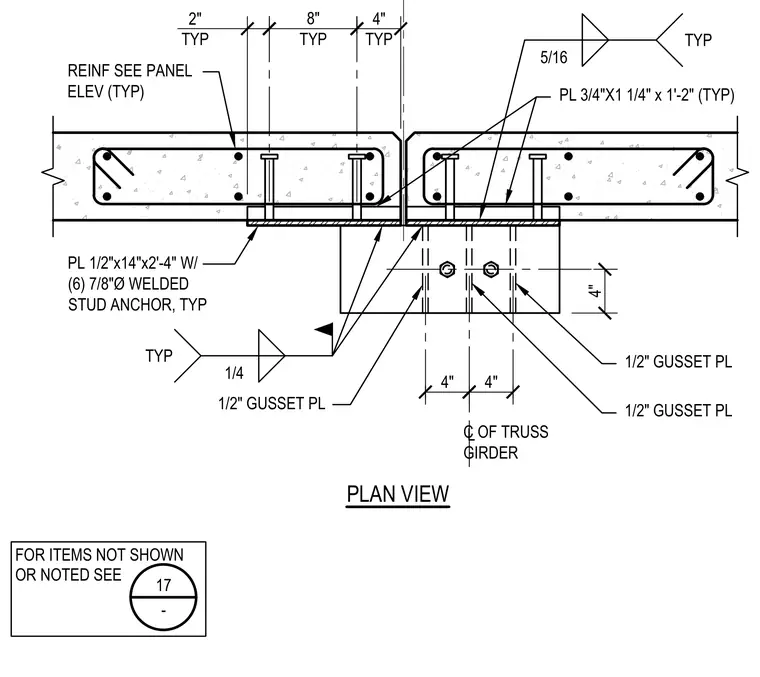

This plan view details a structural connection at a truss girder near a panel joint. Concrete panels incorporate embedded plates measuring 1/2 inch by 14 inches by 2 feet 4 inches, secured with six 7/8 inch diameter welded stud anchors. Additional 3/4 inch by 1-1/4 inch by 1-2 inch plates provide reinforcement as specified in the panel elevation. Gusset plates measuring 1/2 inch connect the components, utilizing 5/16 inch and 1/4 inch fillet welds as indicated on the drawing. The centerline of the truss girder aligns through the connection assembly.
2" TYP 8" TYP 4" TYP 5/16 TYP PLAN VIEW 1/2" GUSSET PL C OF TRUSS GIRDER L 4" 1/4 TYP 4" 4" 1/2" GUSSET PL FOR ITEMS NOT SHOWN OR NOTED SEE 17 - PL 1/2"x14"x2'-4" W/ (6) 7/8"Ø WELDED STUD ANCHOR, TYP PL 3/4"X1 1/4" x 1'-2" (TYP) REINF SEE PANEL ELEV (TYP) 1/2" GUSSET PL
