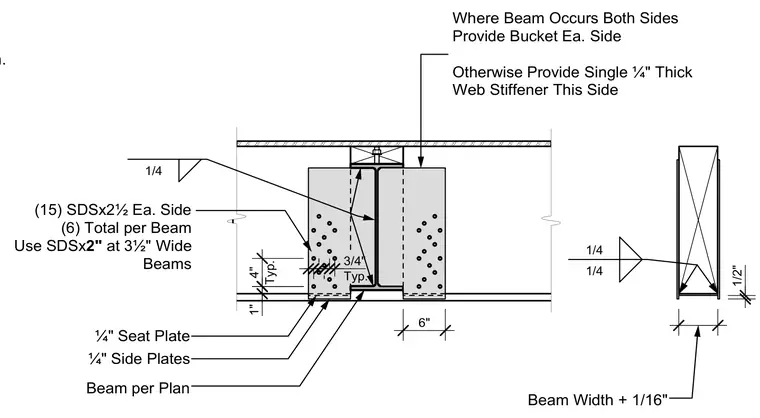

A steel beam is supported by a one-inch-minimum seat plate and quarter-inch side plates welded with quarter-inch fillet welds. Where beams occur on both sides, a bucket is provided on each side; otherwise, a single quarter-inch-thick web stiffener is installed on the required side. Fastening is accomplished using fifteen self-drilling screws measuring two and a half inches on each side, totaling six per beam, with two-inch screws specified at three-and-a-half-inch-wide beams. The side plates maintain a width equal to the beam width plus one-sixteenth of an inch.
Min. 1" Beam per Plan ¼" Seat Plate Where Beam Occurs Both Sides Provide Bucket Ea. Side Otherwise Provide Single ¼" Thick Web Stiffener This Side (15) SDSx2½ Ea. Side (6) Total per Beam Use SDSx 2" at 3½" Wide Beams Beam Width + 1/16" ¼" Side Plates 1/4 1/4 1/4 3/4" Typ. 4" Typ. 6" 1/2"
