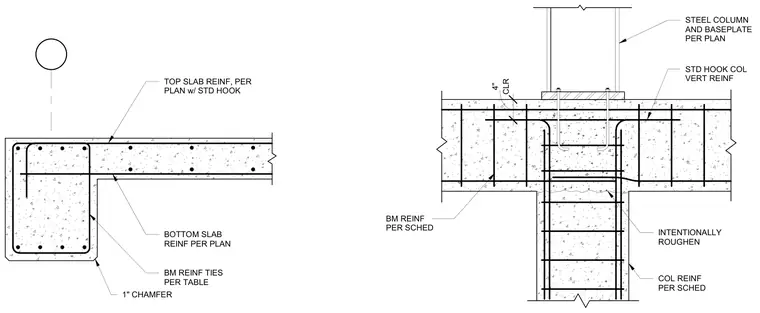

A steel column and base plate are anchored atop a concrete slab with vertical column reinforcing bars featuring standard hooks and a four-inch clearance. Beam reinforcement ties and top and bottom slab reinforcement are sized per plan and schedule. The concrete interface features an intentionally roughened surface and a one-inch chamfer at the edge.
TOP SLAB REINF, PER PLAN w/ STD HOOK BOTTOM SLAB REINF PER PLAN BM REINF TIES PER TABLE 1" CHAMFER INTENTIONALLY ROUGHEN BM REINF PER SCHED COL REINF PER SCHED STD HOOK COL VERT REINF CLR 4" STEEL COLUMN AND BASEPLATE PER PLAN
