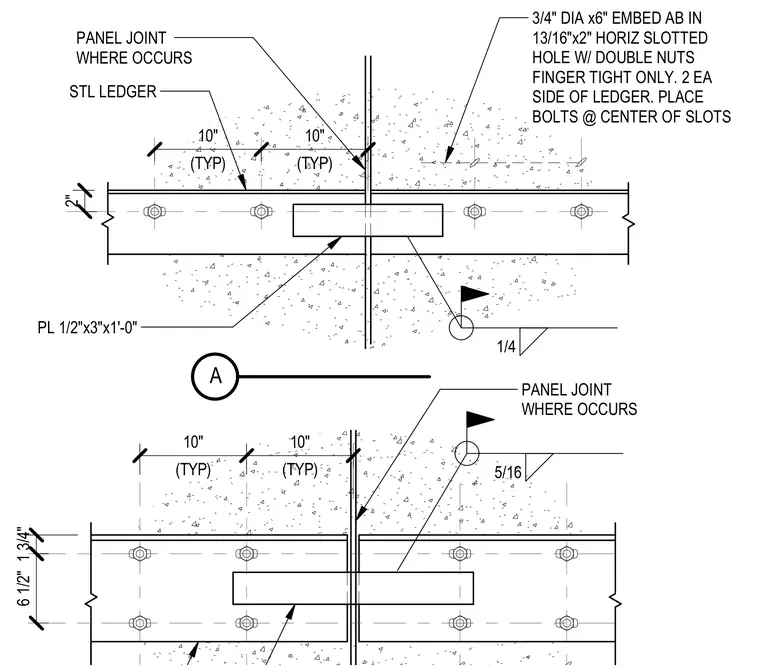

A steel ledger splice connection bridges across a concrete panel joint. The assembly features a steel ledger anchored by three-quarter-inch diameter by six-inch embedment anchor bolts installed in thirteen-sixteenths by two-inch horizontal slotted holes with double nuts tightened finger tight only. Two anchor bolts are provided on each side of the ledger. A one-half-inch by three-inch by one-foot-zero-inch splice plate bridges the panel joint where it occurs. Fillet welds of one-quarter-inch and five-sixteenth-inch sizes secure the steel components.
6 1/2" 1 3/4" (TYP) 10" (TYP) 10" PANEL JOINT WHERE OCCURS 5/16 PL 1/2"x3"x1'-0" 1/4 (TYP) 10" (TYP) 10" STL LEDGER PANEL JOINT WHERE OCCURS 3/4" DIA x6" EMBED AB IN 13/16"x2" HORIZ SLOTTED HOLE W/ DOUBLE NUTS FINGER TIGHT ONLY. 2 EA SIDE OF LEDGER. PLACE BOLTS @ CENTER OF SLOTS A 2"
