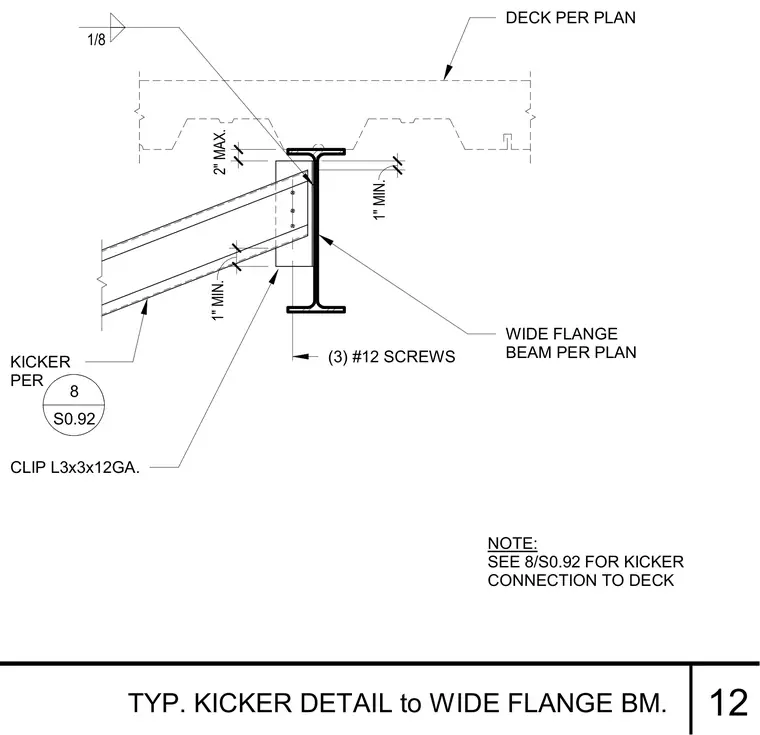

A structural kicker brace connects to the web of a wide flange beam using a L3x3x12-gauge clip angle secured with three #12 screws. The kicker maintains a maximum distance of 2 inches from the underside of the deck, with a 1-inch minimum clearance requirement. A note references detail 8/S0.92 for the continuation of the kicker connection to the deck.
WIDE FLANGE BEAM PER PLAN CLIP L3x3x12GA. (3) #12 SCREWS DECK PER PLAN KICKER PER 2" MAX. NOTE: SEE 8/S0.92 FOR KICKER CONNECTION TO DECK 1" MIN. 1" MIN. 8 S0.92 1/8 TYP. KICKER DETAIL to WIDE FLANGE BM. 12
