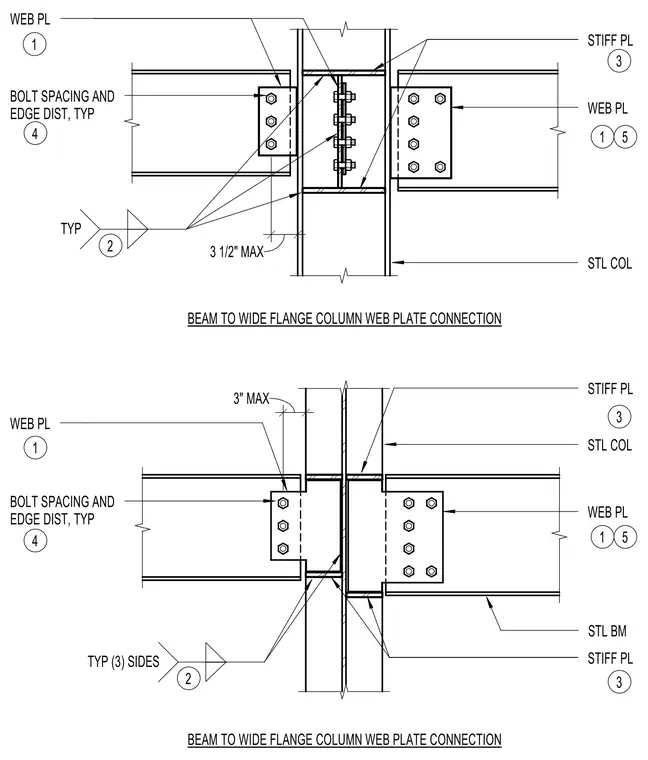

Steel beams connect to a wide flange steel column web using welded web plates and stiffener plates. The steel beams frame into both sides of the steel column with typical bolt spacing and edge distances. Horizontal stiffener plates are welded to the column web aligned with the beam flanges, with welds specified typically on three sides. Additional web plates are bolted to connect the beam webs to the central column web connection assembly.
BEAM TO WIDE FLANGE COLUMN WEB PLATE CONNECTION BEAM TO WIDE FLANGE COLUMN WEB PLATE CONNECTION WEB PL WEB PL STIFF PL STIFF PL WEB PL WEB PL STL COL STL COL STL BM STIFF PL 1 3 1 1 3 1 3 2 3 1/2" MAX 5 2 5 3" MAX BOLT SPACING AND EDGE DIST, TYP 4 BOLT SPACING AND EDGE DIST, TYP 4 TYP TYP (3) SIDES
