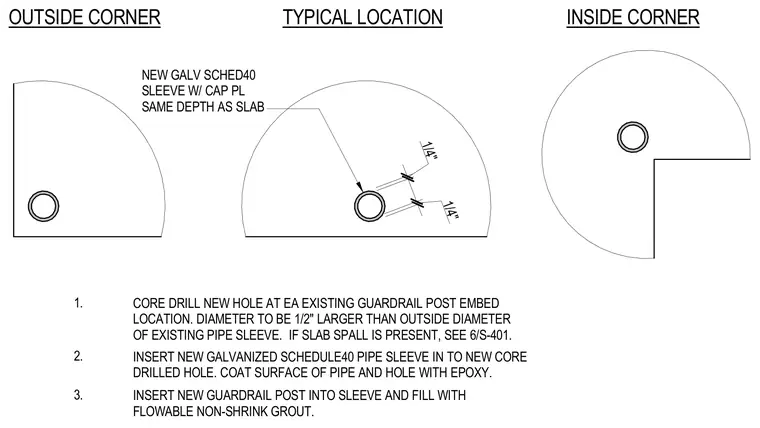

A new hole is core-drilled at each existing guardrail post embed location, with a diameter half an inch larger than the outside diameter of the existing pipe sleeve. A new galvanized schedule forty pipe sleeve, featuring a cap plate matching the depth of the slab, is inserted into the core-drilled hole after the surface of the pipe and hole are coated with epoxy. The guardrail post is then inserted into the sleeve and the assembly is filled with flowable non-shrink grout. Separate plan layouts show the post positioning for outside corner, typical location, and inside corner conditions.
1/4" 1/4" CORE DRILL NEW HOLE AT EA EXISTING GUARDRAIL POST EMBED LOCATION. DIAMETER TO BE 1/2" LARGER THAN OUTSIDE DIAMETER OF EXISTING PIPE SLEEVE. IF SLAB SPALL IS PRESENT, SEE 6/S-401. 1. 2. INSERT NEW GALVANIZED SCHEDULE40 PIPE SLEEVE IN TO NEW CORE DRILLED HOLE. COAT SURFACE OF PIPE AND HOLE WITH EPOXY. 3. INSERT NEW GUARDRAIL POST INTO SLEEVE AND FILL WITH FLOWABLE NON-SHRINK GROUT. OUTSIDE CORNER TYPICAL LOCATION INSIDE CORNER NEW GALV SCHED40 SLEEVE W/ CAP PL SAME DEPTH AS SLAB
