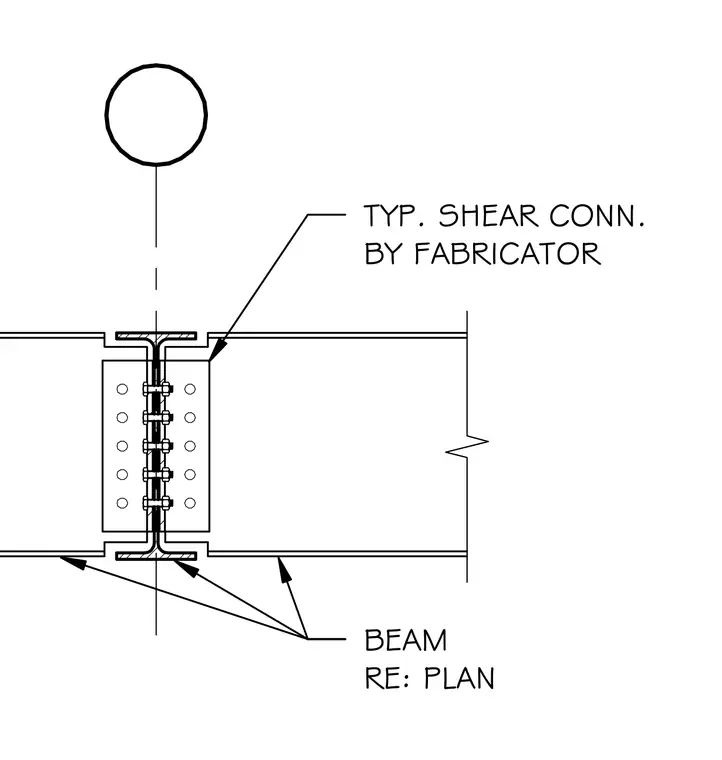

A typical beam-to-beam or beam-to-column shear connection is provided by the fabricator, with connection sizing and member profiles referenced per plan. Steel beams frame into the connection utilizing standard bolted web framing angles or plates.
TYP. SHEAR CONN. BY FABRICATOR BEAM RE: PLAN
