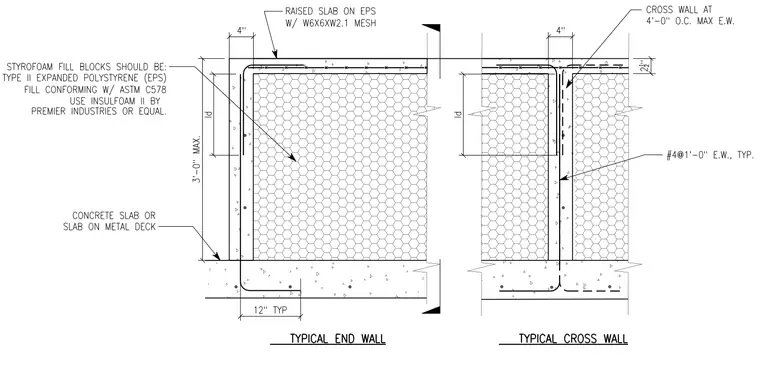

A raised concrete slab with W6x6-W2.1 welded wire mesh bears on Type II expanded polystyrene fill blocks conforming to ASTM C578, such as Insulfoam II by Premier Industries or equal. The edge detail shows a concrete slab or slab on metal deck supporting the fill blocks, with vertical and horizontal reinforcing steel anchored into the assembly. A typical end wall condition includes a three-foot maximum vertical dimension with specified lap lengths, while a typical cross wall condition incorporates number four reinforcing bars spaced at one foot on center each way typical. Cross walls occur at four feet on center max each way.
