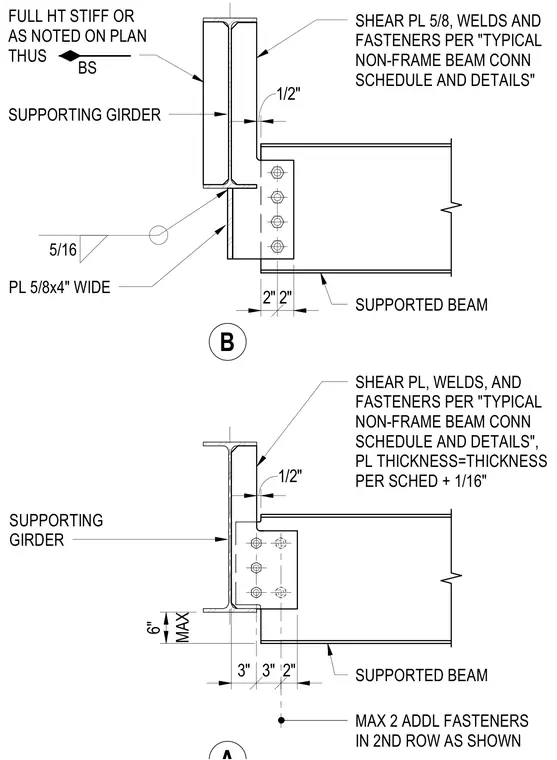

An offset supported beam connects to the web of a supporting girder using a five-eighths-inch shear plate welded per the non-frame beam connection schedule. Detail B incorporates a five-eighths-inch by four-inch plate with a five-sixteenths-inch fillet weld and a full-height stiffener on the supporting girder web. Detail A accommodates up to two additional fasteners in a second row as shown, with a plate thickness calculated per schedule plus one-sixteenth-inch. Both configurations maintain a half-inch clearance between the supported beam flange and the supporting girder web.
SHEAR PL, WELDS, AND FASTENERS PER "TYPICAL NON-FRAME BEAM CONN SCHEDULE AND DETAILS", PL THICKNESS=THICKNESS PER SCHED + 1/16" SUPPORTED BEAM MAX 2 ADDL FASTENERS IN 2ND ROW AS SHOWN SUPPORTING GIRDER SHEAR PL 5/8, WELDS AND FASTENERS PER "TYPICAL NON-FRAME BEAM CONN SCHEDULE AND DETAILS" SUPPORTED BEAM PL 5/8x4" WIDE SUPPORTING GIRDER FULL HT STIFF OR AS NOTED ON PLAN THUS BS 3" 3" 2" B 5/16 MAX 6" 1/2" 2" 2" 1/2"
