Structural · S-J98SC

CJP Column Splice Flange and Web Transition Details

Materials

weld

Elements

Columns

Connections

Welded Connection Rebar Splice / Development

About this detail

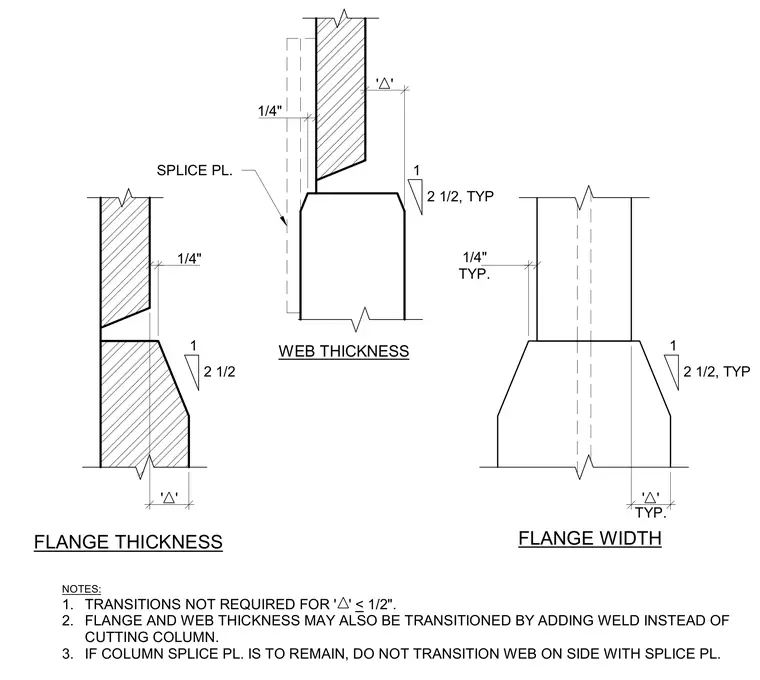

Complete joint penetration welded column splices require smooth transitions when connecting members with differing flange thicknesses, flange widths, or web thicknesses. Transitions are not required when the dimensional difference is less than or equal to one-half inch. Flange and web thicknesses may also be transitioned by adding weld metal instead of cutting the column profile. When a column splice plate is to remain, the web is left untransitioned on the side with the splice plate. Fillet welds of one-quarter inch are applied typically.
