Typical Braced Frame Beam Condition

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

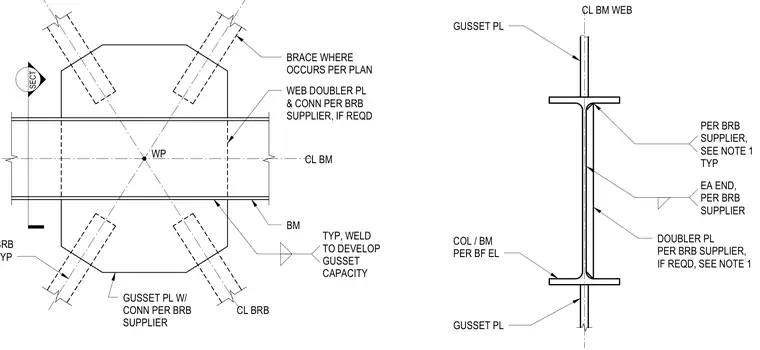

A structural braced frame beam connection utilizes gusset plates and buckling-restrained braces. The assembly features a central beam intersected by diagonal braces located per plan, with connections engineered per the buckling-restrained brace supplier. A web doubler plate is provided at the beam web where required, welded to develop the full capacity of the gusset plate. Additional gusset plates connect to the column or beam web at each end with specified welds.
