Structural · S-J97HV

Cable Barrier and Hollow Structural Section Connection Detail

Materials

Steel Timber / Wood

Elements

Arches

Connections

HSS Connection Bolted Connection

About this detail

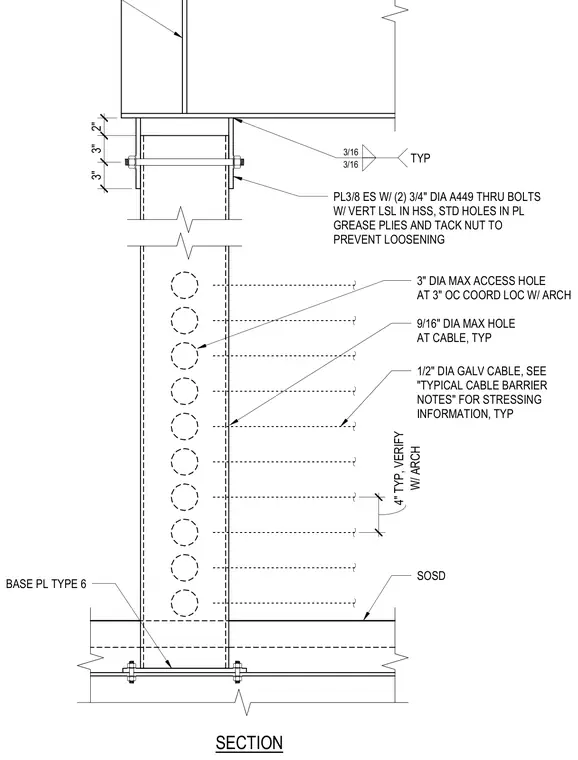

A hollow structural section member connects to the incoming beam with a three-eighths-inch plate on each side fastened by two three-quarter-inch-diameter A449 through bolts containing a vertical laminated strand lumber insert inside the hollow structural section with standard holes in the plate where plies are greased and nuts are tack welded to prevent loosening. Three-inch-diameter maximum access holes occur at three inches on center coordinated with the architectural layout, and nine-sixteenth-inch-diameter maximum holes accommodate one-half-inch-diameter galvanized cables spaced at four inches typical. The hollow structural section bases onto a type six base plate secured with anchor bolts.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
