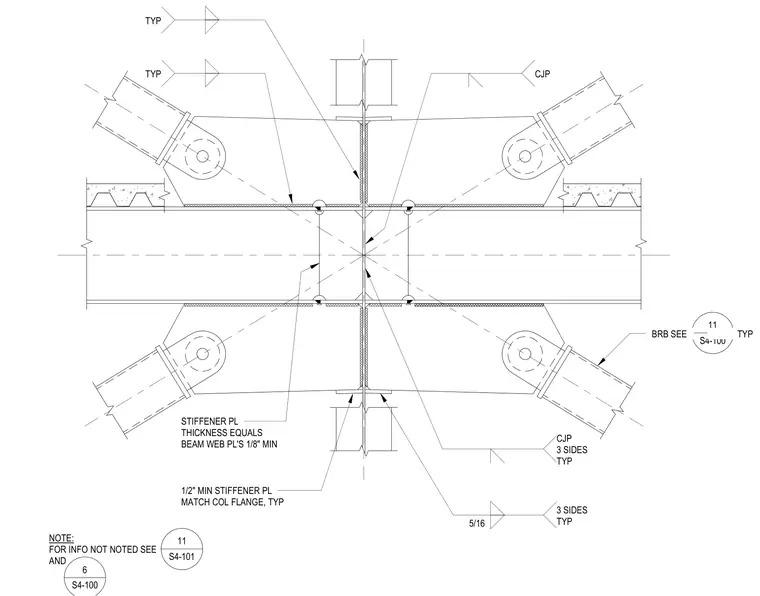

A buckling-restrained brace connects to a structural steel column web at a floor level with a gusset plate welded to the column and beam. Stiffener plates matching the column flange thickness are provided at a minimum of one-half inch, with stiffener plate thickness equaling the beam web plate plus one-eighth inch minimum. Complete joint penetration welds are specified on three sides typically. Fillet welds of five-sixteenth inch are applied on three sides typically. The floor assembly features a concrete slab on metal deck framing into the steel beam.
11 S4-101 6 S4-100 11 S4-100 NOTE: FOR INFO NOT NOTED SEE AND STIFFENER PL THICKNESS EQUALS BEAM WEB PL'S 1/8" MIN TYP TYP CJP CJP 3 SIDES TYP 5/16 3 SIDES TYP 1/2" MIN STIFFENER PL MATCH COL FLANGE, TYP BRB SEE TYP
