A steel beam framing connection occurs at a window head with a concrete over metal deck floor system, sized per plan. Cold-formed metal framing studs measuring 6 inches by 18 gauge (600S162-43) are spaced at 16 inches on center with a 6-inch by 16-gauge (600T125-54) continuous track at the top of the window. A structural steel beam connects via a bolted framing angle to the supporting perpendicular steel beam or column assembly. The concrete over metal deck slab bears above with designated clearances and dimensions, including a 1-1/2 inch dimension and a sub-12 inch spacing constraint. Wall finishes and window interfaces are coordinated per architectural requirements.

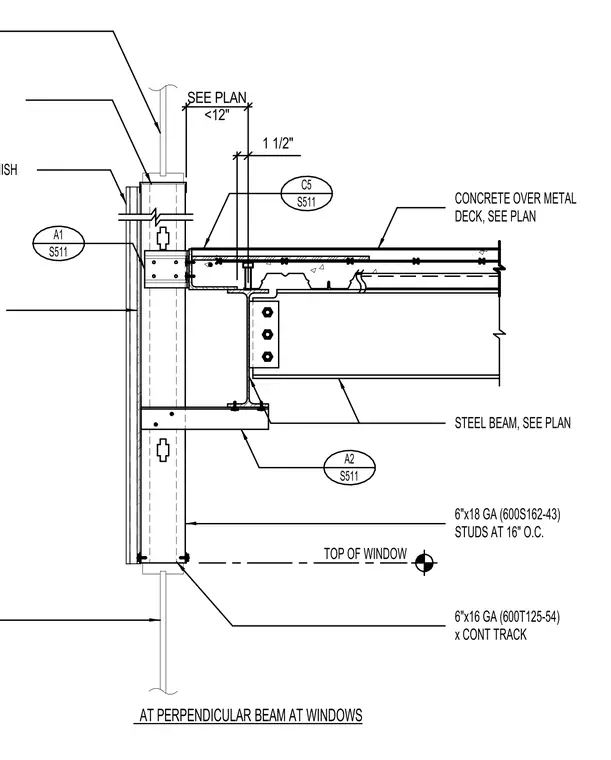

C5 S511 A2 S511 A1 S511 AT PERPENDICULAR BEAM AT WINDOWS STEEL BEAM, SEE PLAN CONCRETE OVER METAL DECK, SEE PLAN STUDS AT 16" O.C. 6"x18 GA (600S162-43) SEE ARCH FOR WALL FINISH TOP OF WINDOW 6"x16 GA (600T125-54) x CONT TRACK 1 1/2" SEE PLAN <12"
