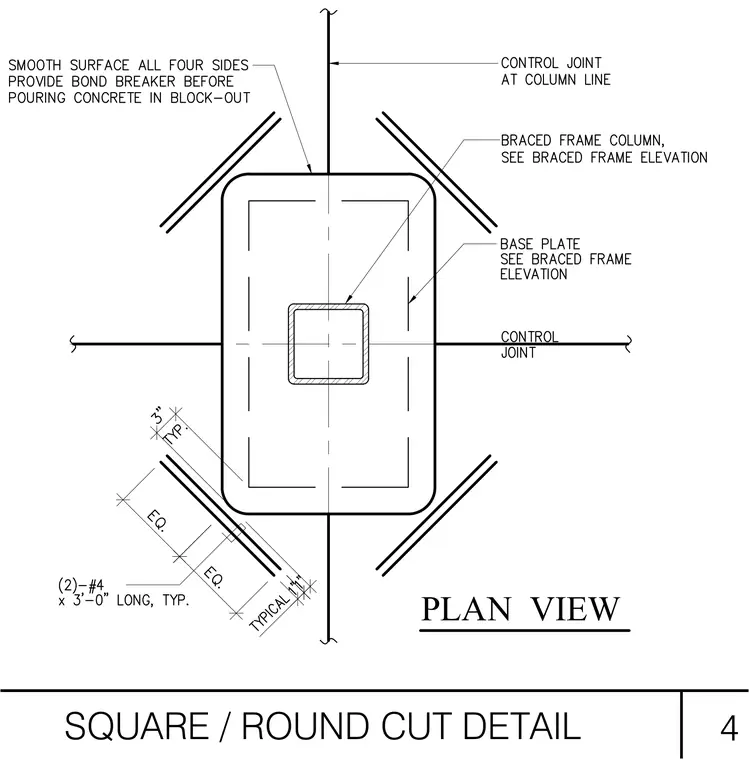

A structural column base plate sits centered within a rectangular concrete block-out featuring smooth surfaces on all four sides and a bond breaker applied prior to pouring concrete. Two number four reinforcing bars, three feet zero inches long, are placed symmetrically at typical equal spacings around the perimeter. Control joints intersect at the column line and align with the block-out edges, while the braced frame column and base plate are coordinated per the braced frame elevation.
