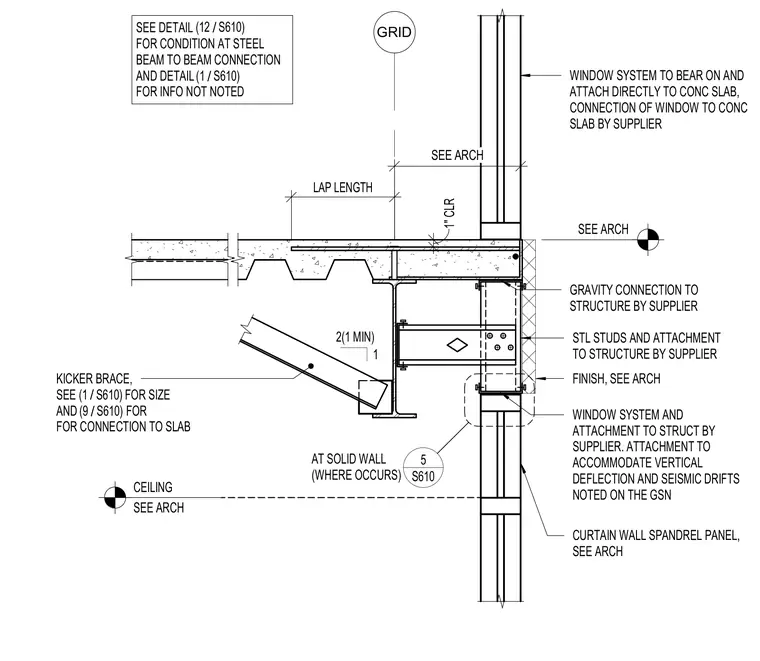

A concrete slab on metal deck bears upon a steel beam assembly equipped with a kicker brace for lateral support. A window system bears on and attaches directly to the concrete slab, with gravity and lateral connections provided by the supplier. Steel studs and finishes attach to the structure, designed to accommodate vertical deflection and seismic drifts. A curtain wall spandrel panel interfaces with the slab edge per architectural drawings.
SEE DETAIL FOR CONDITION AT STEEL BEAM TO BEAM CONNECTION AND DETAIL FOR INFO NOT NOTED / (12 S610) / (1 S610) GRID LAP LENGTH 1" CLR 2(1 MIN) 1 CEILING SEE ARCH WINDOW SYSTEM TO BEAR ON AND ATTACH DIRECTLY TO CONC SLAB, CONNECTION OF WINDOW TO CONC SLAB BY SUPPLIER SEE ARCH GRAVITY CONNECTION TO STRUCTURE BY SUPPLIER STL STUDS AND ATTACHMENT TO STRUCTURE BY SUPPLIER FINISH, SEE ARCH WINDOW SYSTEM AND ATTACHMENT TO STRUCT BY SUPPLIER. ATTACHMENT TO ACCOMMODATE VERTICAL DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN KICKER BRACE, SEE FOR SIZE AND FOR FOR CONNECTION TO SLAB / (9 S610) CURTAIN WALL SPANDREL PANEL, SEE ARCH / (1 S610) S610 5 AT SOLID WALL (WHERE OCCURS) SEE ARCH
