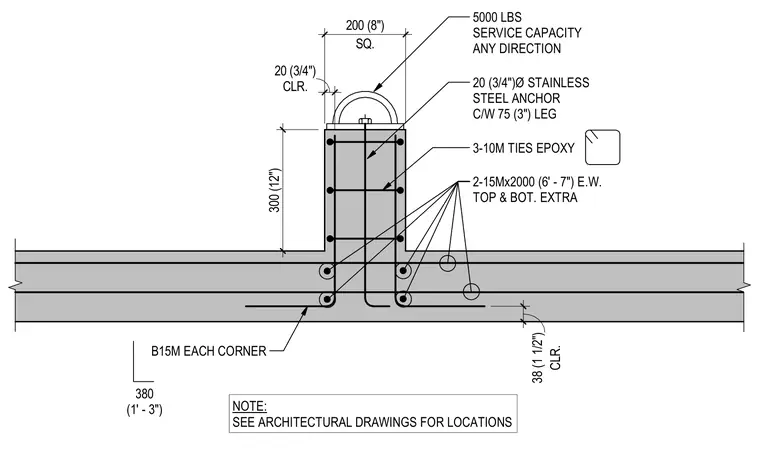

A three-quarter inch diameter stainless steel anchor with a three-inch leg is embedded in a cast-in-place concrete pier providing a five thousand pound service capacity in any direction. The pier measures eight by twelve inches and features three ten-millimeter ties secured with epoxy, alongside two fifteen-millimeter by two thousand millimeter extra reinforcing bars in both top and bottom directions. Additional fifteen-millimeter reinforcing bars are placed at each corner with one and a half inch bottom clearance. A note directs the builder to check architectural drawings for placement locations.
5000 LBS SERVICE CAPACITY ANY DIRECTION SQ. 200 (8") 300 (12") CLR. 20 (3/4") 3-10M TIES EPOXY 2-15Mx2000 (6' - 7") E.W. TOP & BOT. EXTRA CLR. 38 (1 1/2") B15M EACH CORNER 380 (1' - 3") 20 (3/4")Ø STAINLESS STEEL ANCHOR C/W 75 (3") LEG NOTE: SEE ARCHITECTURAL DRAWINGS FOR LOCATIONS
