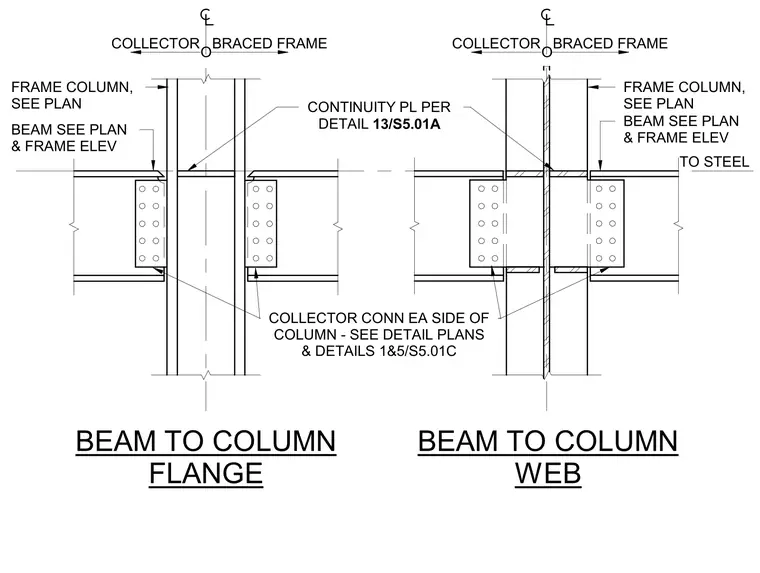

The structural steel beam frames into the frame column flange and column web as sized per plan and frame elevation. Continuity plates are provided per detail 13 on sheet S5.01A. Collector connections are detailed on each side of the column per detail plans and details 1 and 5 on sheet S5.01C.
COLLECTOR CONN EA SIDE OF COLUMN - SEE DETAIL PLANS & DETAILS 1&5/S5.01C BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL PER DETAIL 13/S5.01A O BRACED FRAME COLLECTOR TO STEEL BEAM TO COLUMN FLANGE BEAM TO COLUMN WEB O BRACED FRAME COLLECTOR BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN
