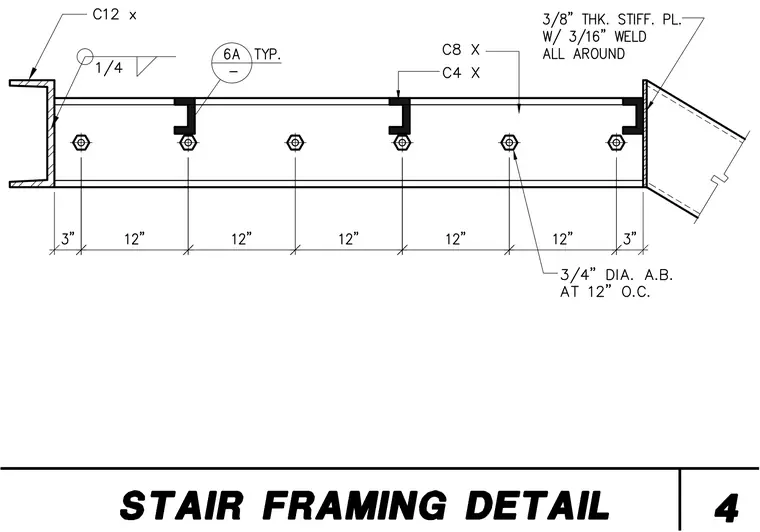

This structural connection features a C12 channel framing member tied into intermediate C4 and C8 channels with typical detail callouts. Three-quarter-inch diameter anchor bolts are spaced at twelve inches on center with edge distances of three inches. A three-eighths-inch thick stiffener plate with a three-sixteenths-inch weld all around is welded to the end of the assembly. A quarter-inch fillet weld secures the channel connection at the left end.
