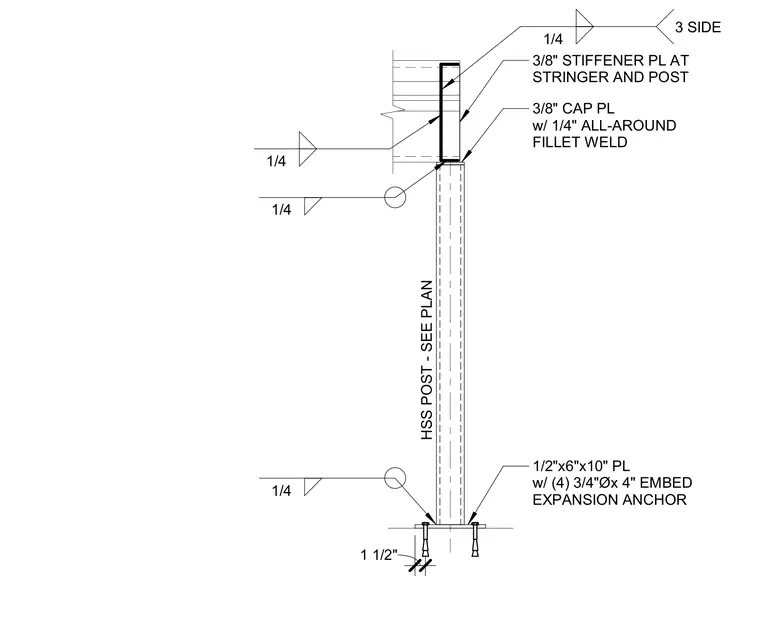

A hollow structural section stair post is anchored to the floor slab using a one-half by six by ten inch base plate secured by four three-quarter inch diameter by four inch embedment expansion anchors. The top of the post receives a three-eighths inch cap plate attached with a one-quarter inch all-around fillet weld. A three-eighths inch stiffener plate is welded at the stringer and post using a one-quarter inch fillet weld on three sides.
1/2"x6"x10" PL w/ (4) 3/4"Øx 4" EMBED EXPANSION ANCHOR HSS POST - SEE PLAN 3/8" CAP PL w/ 1/4" ALL-AROUND FILLET WELD 1/4 1/4 3 SIDE 3/8" STIFFENER PL AT STRINGER AND POST 1/4 1/4 1 1/2"
