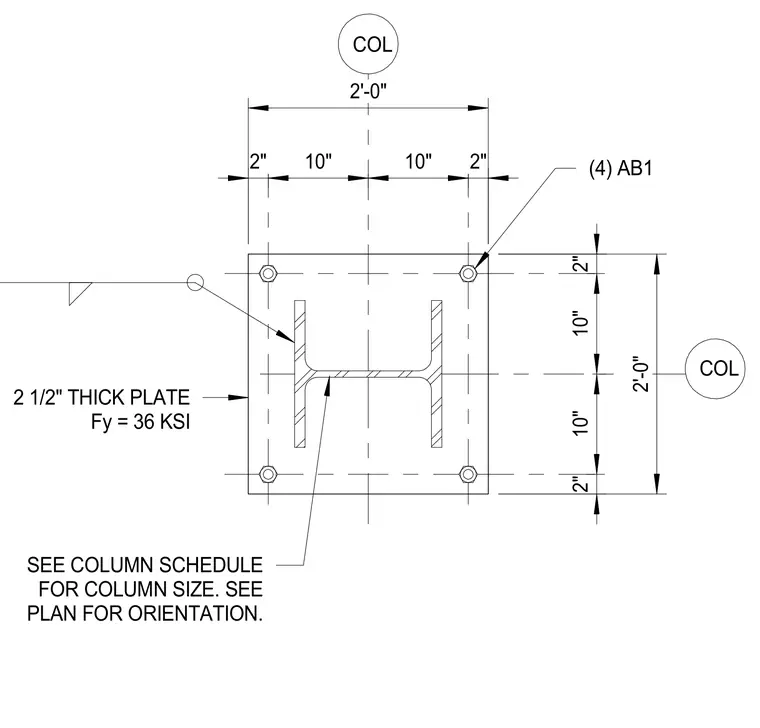

A square structural steel base plate measuring two feet by two feet receives a steel column section sized per schedule and oriented per plan. Four anchor bolts designated as AB1 are positioned in the corners at ten-inch spacings from centerlines with two-inch edge distances. The two-and-one-half-inch thick plate is fabricated from steel with a yield strength of thirty-six ksi. A weld symbol connects the base plate to the column profile.
SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 2 1/2" THICK PLATE Fy = 36 KSI (4) AB1 COL COL 2'-0" 2" 10" 10" 2" 2'-0" 2" 10" 10" 2"
