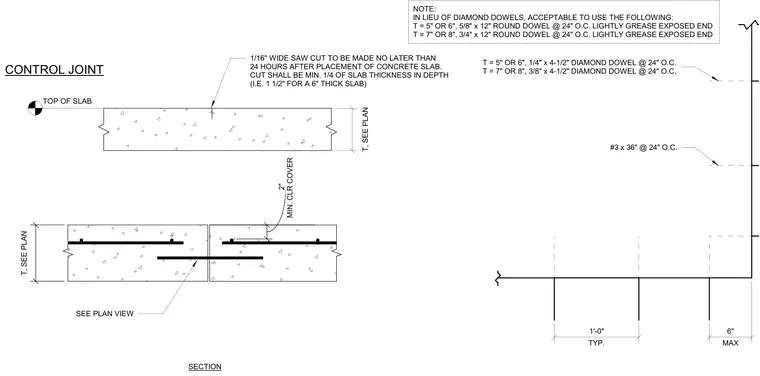

A concrete slab control joint utilizes diamond-shaped or round steel dowels for load transfer across the joint. For slabs five or six inches thick, a one-quarter-inch by four-and-a-half-inch diamond dowel or a five-eighths-inch by twelve-inch round dowel is specified at twenty-four inches on center. For slabs seven or eight inches thick, a three-eighths-inch by four-and-a-half-inch diamond dowel or a three-quarter-inch by twelve-inch round dowel is used at the same spacing. Round dowels require the exposed end to be lightly greased to allow for movement. A one-sixteenth-inch wide saw cut is required within twenty-four hours of concrete placement, extending to a minimum depth of one-quarter of the slab thickness. A minimum clear cover of two inches is maintained for reinforcement.
Text on the drawing
SEE PLAN VIEW MIN. CLR COVER 2" T, SEE PLAN PLAN VIEW SECTION #3 x 36" @ 24" O.C. T = 5" OR 6", 1/4" x 4-1/2" DIAMOND DOWEL @ 24" O.C. T = 7" OR 8", 3/8" x 4-1/2" DIAMOND DOWEL @ 24" O.C. MAX 6" TYP. 1'-0" TYP. 1'-0" NOTE: IN LIEU OF DIAMOND DOWELS, ACCEPTABLE TO USE THE FOLLOWING: T = 5" OR 6", 5/8" x 12" ROUND DOWEL @ 24" O.C. LIGHTLY GREASE EXPOSED END T = 7" OR 8", 3/4" x 12" ROUND DOWEL @ 24" O.C. LIGHTLY GREASE EXPOSED END 1/16" WIDE SAW CUT TO BE MADE NO LATER THAN 24 HOURS AFTER PLACEMENT OF CONCRETE SLAB. CUT SHALL BE MIN. 1/4 OF SLAB THICKNESS IN DEPTH (I.E. 1 1/2" FOR A 6" THICK SLAB) CONTROL JOINT TOP OF SLAB T, SEE PLAN
