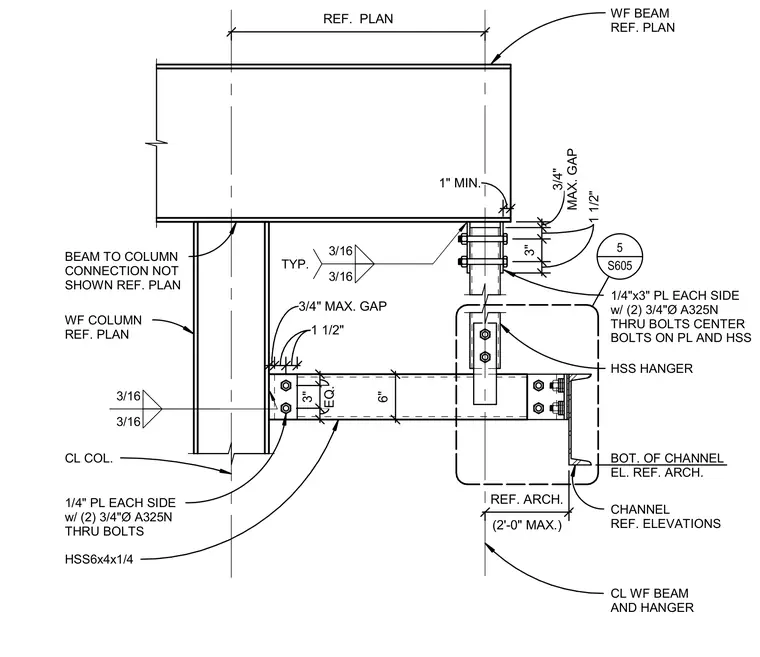

An HSS6x4x1/4 structural steel member connects to a wide-flange column using a quarter-inch plate on each side secured with two three-quarter-inch diameter A325N through bolts. An HSS hanger drops down from a wide-flange beam above, utilizing a quarter-inch by three-inch plate on each side with two three-quarter-inch diameter A325N through bolts centered on the plate and hollow structural section. Three-sixteenths inch fillet welds attach the connection plates to the structural steel elements. A channel member ties into the assembly at the bottom, with dimensions and elevations referenced to architectural plans.
BEAM TO COLUMN CONNECTION NOT SHOWN REF. PLAN 1 1/2" 3" 1 1/2" MAX. GAP 3/4" 1" MIN. CHANNEL REF. ELEVATIONS BOT. OF CHANNEL EL. REF. ARCH. CL WF BEAM AND HANGER 3/4" MAX. GAP 1 1/2" 1 1/2" EQ. 3" EQ. 6" REF. PLAN (2'-0" MAX.) REF. ARCH. S605 5 3/16 3/16 TYP. WF COLUMN REF. PLAN CL COL. WF BEAM REF. PLAN 1/4"x3" PL EACH SIDE w/ (2) 3/4"Ø A325N THRU BOLTS CENTER BOLTS ON PL AND HSS HSS HANGER 1/4" PL EACH SIDE w/ (2) 3/4"Ø A325N THRU BOLTS HSS6x4x1/4 3/16 3/16
