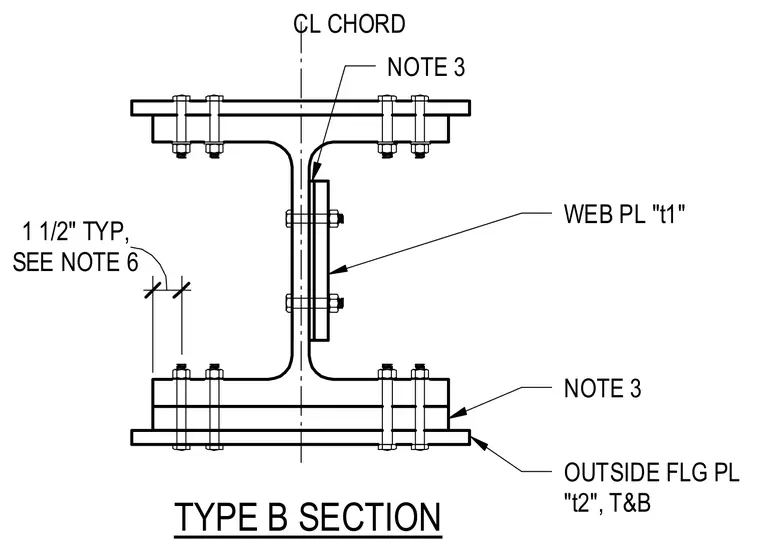

This structural steel connection utilizes outside flange plates of thickness t2 at the top and bottom, secured with multiple bolts spanning across the flange width. A web plate of thickness t1 is bolted to the vertical web with a typical one and one-half inch spacing as noted in the structural drawings. The assembly aligns symmetrically along the center line of the chord.
OUTSIDE FLG PL "t2", T&B NOTE 3 NOTE 3 TYPE B SECTION WEB PL "t1" SEE NOTE 6 1 1/2" TYP, CL CHORD
