An interior insulated metal panel wall connects to a steel roof deck and steel roof joists along a grid line separating a warmer side and a colder side. A 12-gauge continuous bent plate secures to the steel roof deck with one number 10 self-drilling screw at 12 inches on center, while the panel connection is provided by the panel supplier. A 14-gauge continuous bent plate fastens to the top of the insulated metal panel wall with four 0.157-inch diameter powder-actuated fasteners at each joist. The insulated metal panel is sized per architectural drawings.

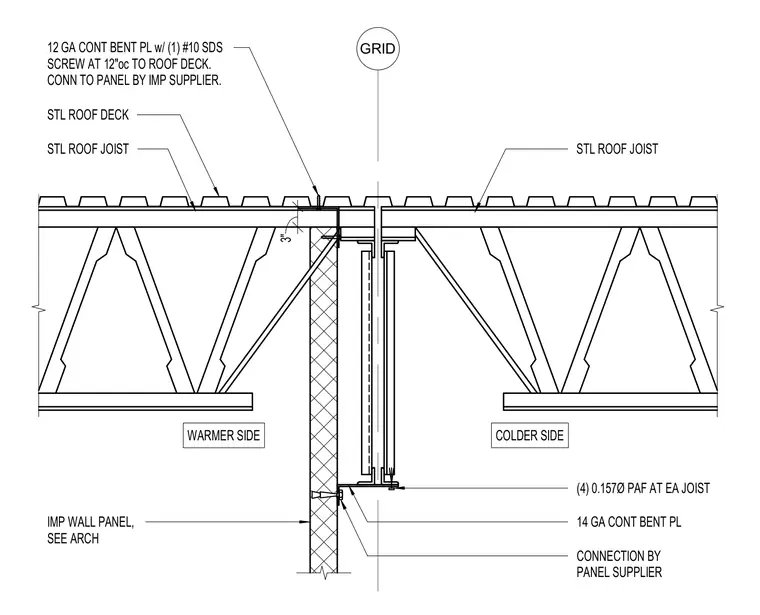

GRID WARMER SIDE COLDER SIDE STL ROOF JOIST STL ROOF JOIST STL ROOF DECK IMP WALL PANEL, SEE ARCH (4) 0.157Ø PAF AT EA JOIST 14 GA CONT BENT PL CONNECTION BY PANEL SUPPLIER 12 GA CONT BENT PL w/ (1) #10 SDS SCREW AT 12"oc TO ROOF DECK. CONN TO PANEL BY IMP SUPPLIER. 3"
