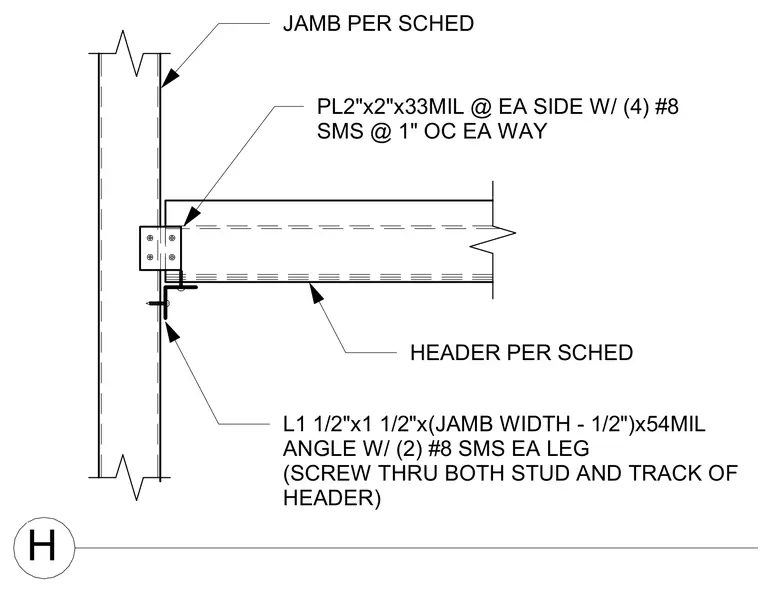

A cold-formed steel header is framed into a jamb stud sized per schedule. A 1 1/2-inch by 1 1/2-inch by 54 mil angle spanning the jamb width minus one-half inch supports the underside of the header, secured with two number 8 sheet metal screws in each leg passing through both the stud and the track of the header. Additionally, 2-inch by 2-inch by 33 mil plates are attached at each side of the header connection using four number 8 sheet metal screws at 1 inch on center each way.
JAMB PER SCHED HEADER PER SCHED L1 1/2"x1 1/2"x(JAMB WIDTH - 1/2")x54MIL ANGLE W/ (2) #8 SMS EA LEG (SCREW THRU BOTH STUD AND TRACK OF HEADER) PL2"x2"x33MIL @ EA SIDE W/ (4) #8 SMS @ 1" OC EA WAY H
