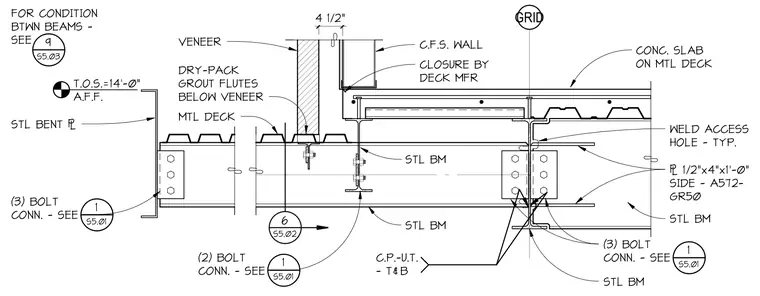

A four-and-a-half-inch concrete slab on metal deck bears over structural steel framing connected by a three-bolt structural steel plate measuring one-half inch by four inches by one foot in ASTM A572 Grade 50 steel. A cold-formed steel wall supports an exterior veneer above, with dry-pack grout filling the metal deck flutes below the veneer line. A closure piece is provided by the deck manufacturer at the wall interface, and a bent steel plate is attached at the floor edge. Typical weld access holes are detailed at the beam web connections.
C.F.S. WALL MTL DECK VENEER 4 1/2" CONC. SLAB ON MTL DECK 1 S5.01 T.O.S.=14'-0" A.F.F. GRID CLOSURE BY DECK MFR ( 1/2"x4"x1'-0" SIDE - A572- GR50 (3) BOLT CONN. - SEE (2) BOLT CONN. - SEE STL BM STL BM STL BM 1 S5.01 (3) BOLT CONN. - SEE 1 S5.01 C.P.-U.T. - T&B STL BM STL BENT ( DRY-PACK GROUT FLUTES BELOW VENEER 6 S5.02 FOR CONDITION BTWN BEAMS - SEE 9 S5.03 WELD ACCESS HOLE - TYP.
