Structural · S-J6NJ3

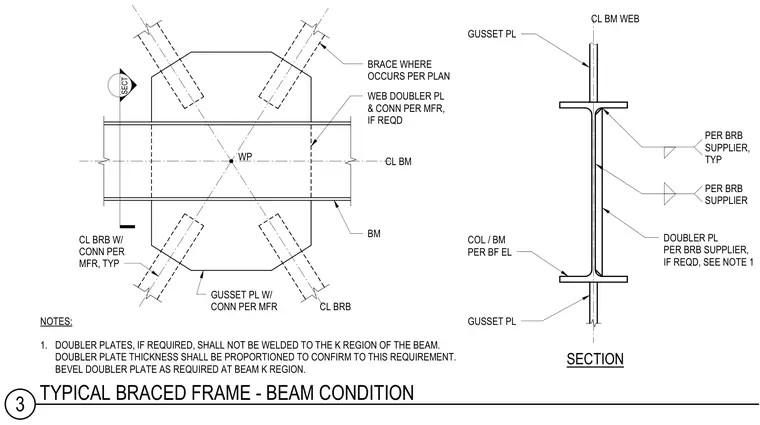

Typical Braced Frame - Beam Condition

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

This structural steel detail shows a typical beam condition for a braced frame with a gusset plate connecting the framing members at the work point. A web doubler plate is provided per the manufacturer's requirements, left unwelded to the beam k-region with its thickness proportioned accordingly and beveled at the k-region as needed. Buckling-restrained braces connect to the gusset plate with connections sized per the supplier.
