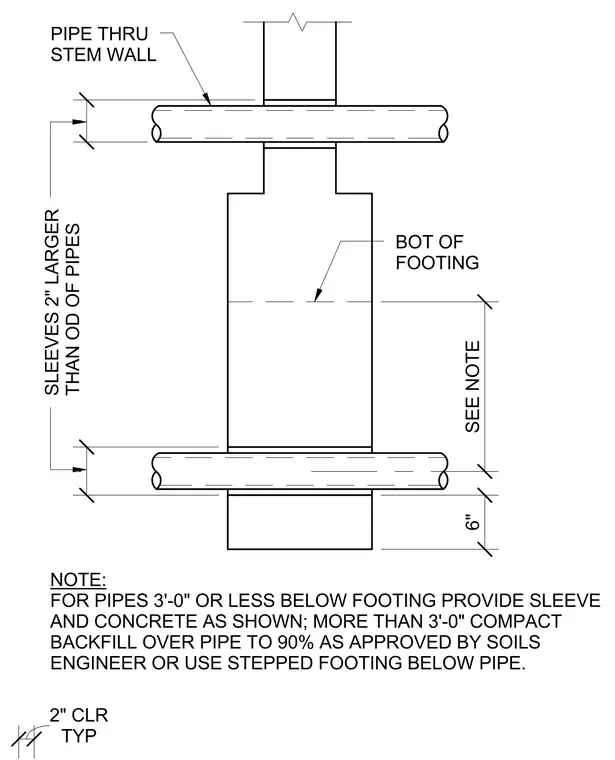

Pipe penetrations pass through a concrete stem wall and below a footing. Pipe sleeves are sized two inches larger than the outside diameter of the pipes, maintaining a typical two-inch clearance. For pipes located three feet or less below the bottom of the footing, provide a sleeve and concrete infill as shown. For pipes located more than three feet below the footing, compact the backfill over the pipe to 90 percent as approved by the soils engineer or use a stepped footing below the pipe.
TYP 2" CLR PIPE THRU STEM WALL BOT OF FOOTING NOTE: FOR PIPES 3'-0" OR LESS BELOW FOOTING PROVIDE SLEEVE AND CONCRETE AS SHOWN; MORE THAN 3'-0" COMPACT BACKFILL OVER PIPE TO 90% AS APPROVED BY SOILS ENGINEER OR USE STEPPED FOOTING BELOW PIPE. 6" . . SLEEVES 2" LARGER THAN OD OF PIPES SEE NOTE
