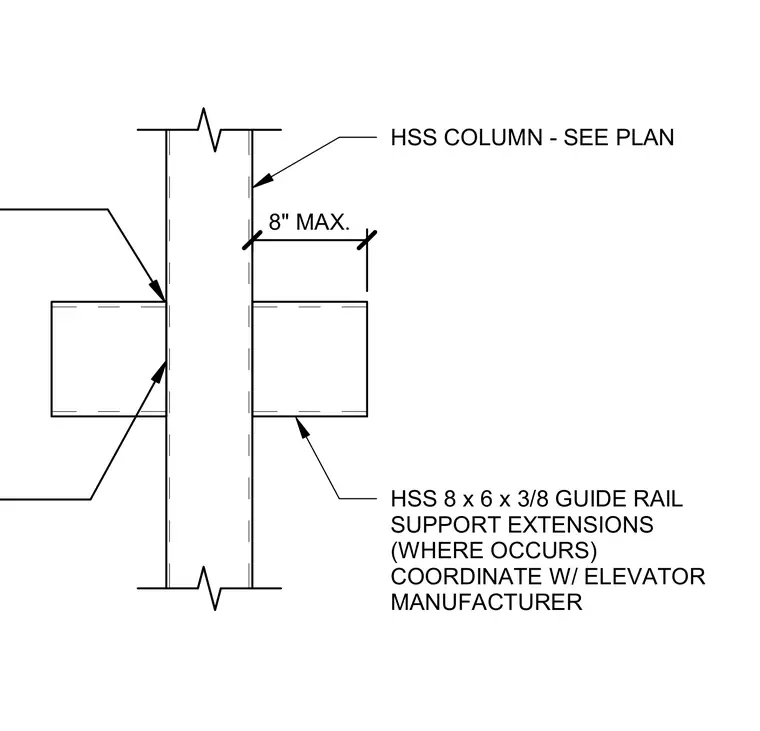

Hollow structural section eight by six by three-eighths guide rail support extensions connect to an HSS column per plan. The extensions maintain a maximum eight-inch offset where required. Coordination with the elevator manufacturer is necessary.
8" MAX. HSS 8 x 6 x 3/8 GUIDE RAIL SUPPORT EXTENSIONS (WHERE OCCURS) COORDINATE W/ ELEVATOR MANUFACTURER HSS COLUMN - SEE PLAN
