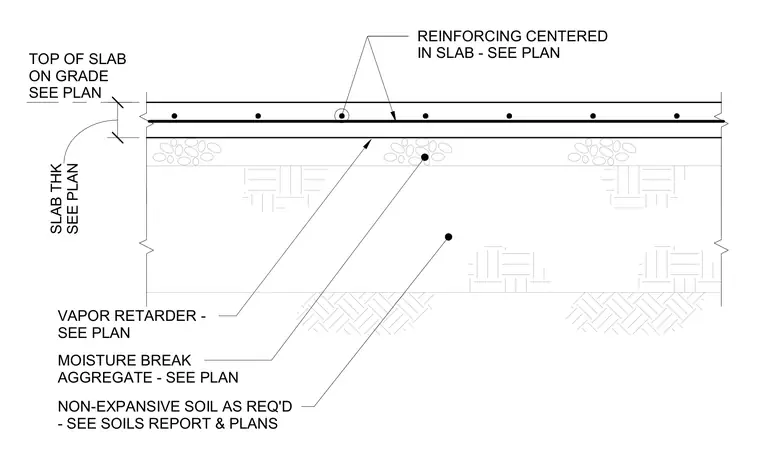

A concrete slab on grade bears on a moisture break aggregate layer over non-expansive soil as required by the soils report and plans. A vapor retarder is installed directly beneath the slab. Reinforcing steel is centered within the slab thickness per structural plans.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL AS REQ'D - SEE SOILS REPORT & PLANS VAPOR RETARDER - SEE PLAN MOISTURE BREAK AGGREGATE - SEE PLAN REINFORCING CENTERED IN SLAB - SEE PLAN SEE PLAN SLAB THK .
