Structural · S-J64BY

Steel Column and HSS Framing at Solid Grouted Masonry Wall

Materials

Elements

Columns Walls Arches Connections / Plates

About this detail

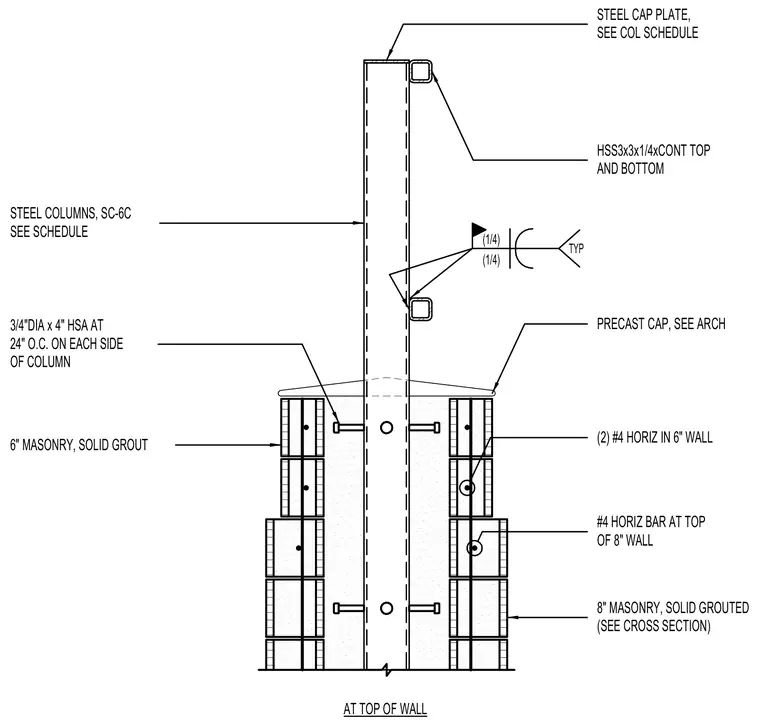

A structural steel column extends through a solid grouted masonry wall topped with a precast concrete cap. Continuous hollow structural section members measuring 3x3x1/4 inches are welded to the column top and bottom with typical quarter-inch fillet welds, while a steel cap plate finishes the top. The masonry assembly transitions from an eight-inch solid grouted wall at the base with number four horizontal reinforcing bars to a six-inch solid grouted wall containing two number four horizontal bars. Three-quarter-inch diameter by four-inch headed stud anchors are spaced at twenty-four inches on center on each side of the column to tie the steel framing into the masonry.
