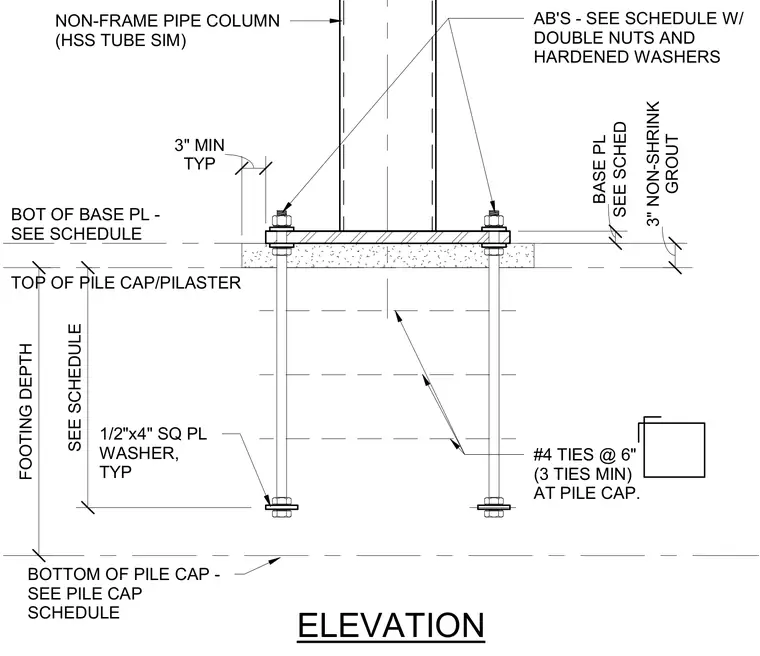

A non-frame pipe column or hollow structural section tube sits atop a steel base plate set over non-shrink grout. Anchor bolts with double nuts and hardened washers secure the base plate to the concrete pile cap or pilaster. Embedded anchor bolts feature square plate washers at their lower ends for anchorage. Number four ties spaced at six inches with a minimum of three ties are provided at the pile cap.
NON-FRAME PIPE COLUMN (HSS TUBE SIM) BOT OF BASE PL - SEE SCHEDULE TOP OF PILE CAP/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF PILE CAP - SEE PILE CAP SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT PILE CAP. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH SEE SCHEDULE
