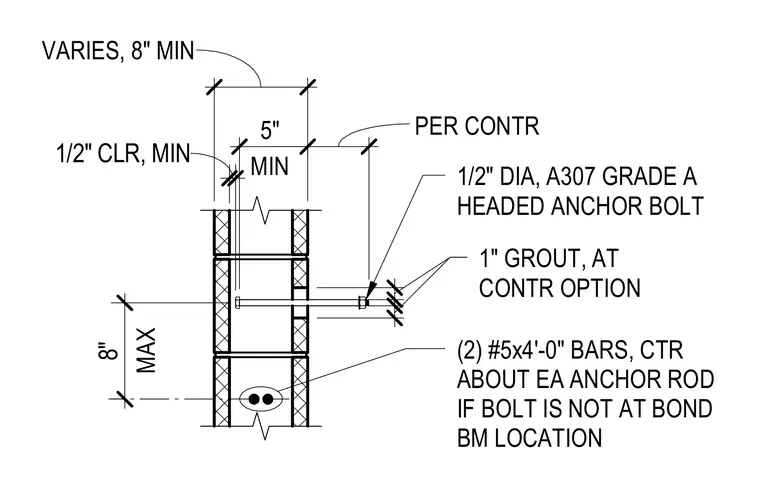

An anchor bolt connection within a concrete masonry unit wall assembly utilizes a one-half-inch diameter ASTM A307 Grade A headed anchor bolt penetrating the masonry core, with one inch of grout placed at the contractor's option. Two number five reinforcing bars at four feet zero inches in length are centered about each anchor rod if the bolt is not located at a bond beam. Minimum clearances of one-half inch and five inches are maintained as specified per contractor requirements.
(2) #5x4'-0" BARS, CTR ABOUT EA ANCHOR ROD IF BOLT IS NOT AT BOND BM LOCATION 7 5/8" MAX 1" GROUT, AT CONTR OPTION 8" 5 5/8" 5" 1" 1" 1/2" CLR, MIN PER CONTR MIN 5" 1/2" DIA, A307 GRADE A HEADED ANCHOR BOLT VARIES, 8" MIN
