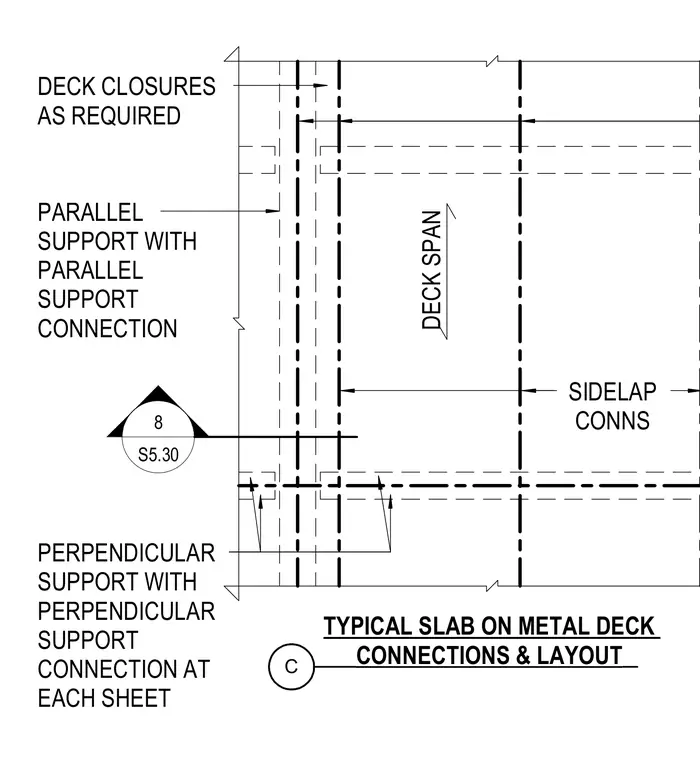

Structural plan layout detailing metal deck connections over parallel and perpendicular supports. Sidelap connections secure adjacent metal deck sheets along the deck span. Deck closures are provided as required at the perimeter and support locations.
C PARALLEL SUPPORT WITH PARALLEL SUPPORT CONNECTION PERPENDICULAR SUPPORT WITH PERPENDICULAR SUPPORT CONNECTION AT EACH SHEET DECK SPAN SIDELAP CONNS DECK CLOSURES AS REQUIRED TYPICAL SLAB ON METAL DECK CONNECTIONS & LAYOUT 8 S5.30
