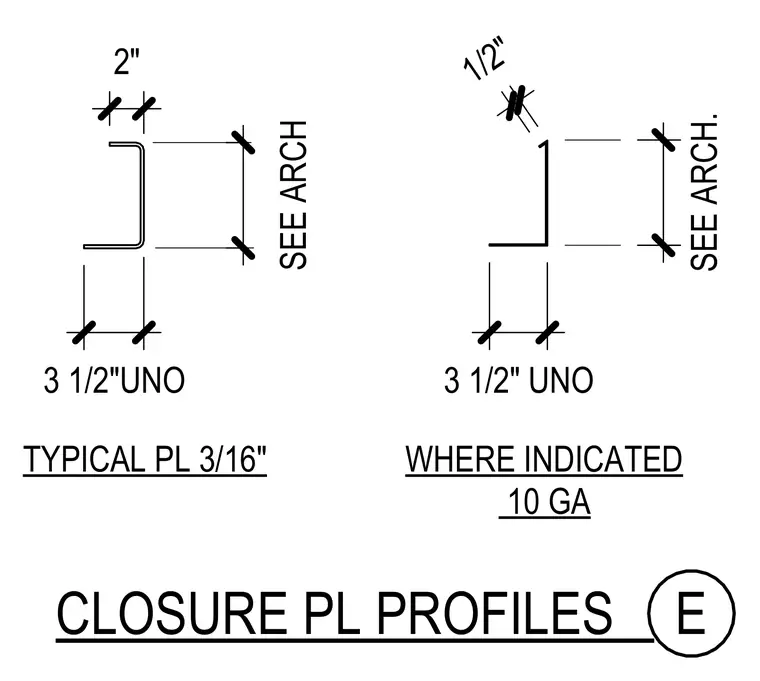

Steel closure plate profiles feature a standard depth of three and one-half inches with a typical plate thickness of three-sixteenths of an inch. Alternate profiles utilize ten-gauge material where specifically indicated on the drawings. Heights are coordinated directly with the architectural drawings.
3 1/2" UNO 1/2" CLOSURE PL PROFILES TYPICAL PL 3/16" WHERE INDICATED 10 GA 2" 3 1/2"UNO SEE ARCH SEE ARCH. E
