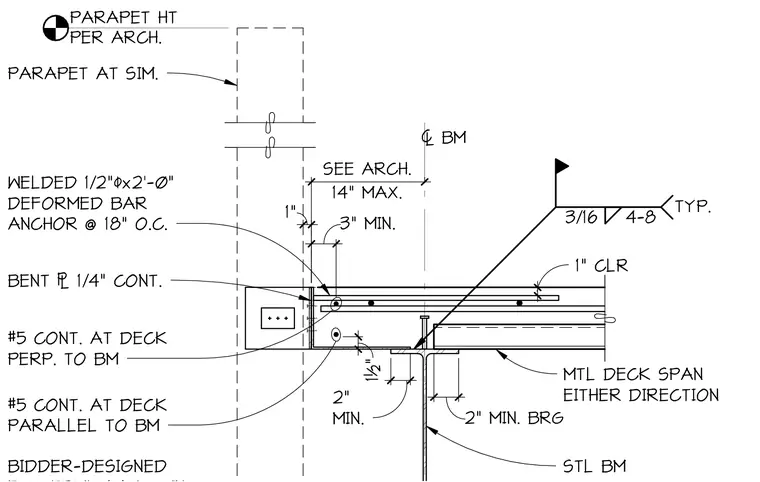

A structural steel beam supports a metal deck spanning in either direction with a two-inch minimum bearing. Welded half-inch diameter by two-foot-long deformed bar anchors are spaced at eighteen inches on center alongside a continuous quarter-inch bent plate. Number five continuous reinforcing bars run at the deck perpendicular to the beam and parallel to the beam with one-inch clearance. A three-sixteenths inch fillet weld with four-inch welds and eight-inch spacing is typical at the connection. The parapet height is per architectural drawings, featuring a bidder-designed configuration.
PARAPET HT PER ARCH. #5 CONT. AT DECK PERP. TO BM MTL DECK SPAN EITHER DIRECTION STL BM 3" MIN. 14" MAX. SEE ARCH. 9 BM 1½" BENT : 1/4" CONT. WELDED 1/2" (x2'-0" DEFORMED BAR ANCHOR @ 18" O.C. #5 CONT. AT DECK PARALLEL TO BM 3/16 4-8 TYP. 1" CLR 2" MIN. BIDDER-DESIGNED PARAPET AT SIM. 2" MIN. BRG 1"
