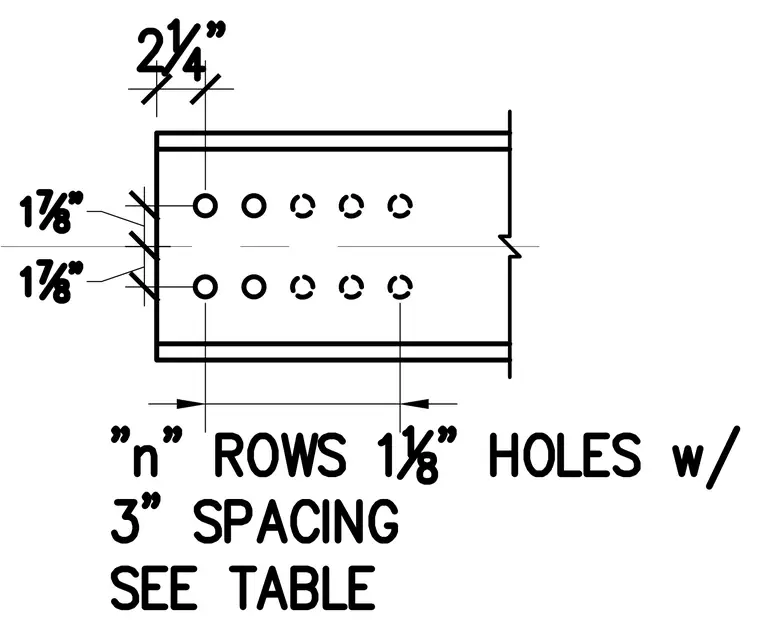

A W14 structural steel brace connection features two parallel rows of one and one-eighth inch bolt holes spaced at three inches on center. The hole pattern is set back two and one-quarter inches from the end edge, with one and seven-eighths inch edge distances measured from the member centerline. The number of rows and total fastener count are determined per the structural schedule. This connection detail dictates the fabrication layout for heavy lateral bracing members in steel framing systems.
