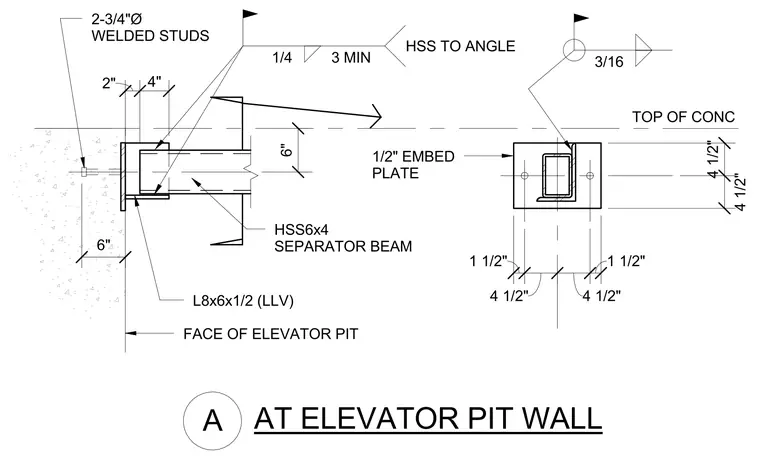

An HSS6x4 separator beam connects to the concrete elevator pit wall via a half-inch embed plate anchored by two three-quarter-inch diameter welded studs. The structural steel assembly utilizes an L8x6x1/2 angle with long legs vertical supporting the hollow structural section. A one-quarter-inch fillet weld secures the HSS to the angle with a three-inch minimum weld length, while a three-sixteenth-inch weld is specified at the angle connection. The embed plate measures vertically with layout dimensions including six-inch spacings and four-and-a-half-inch gauge lines.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
