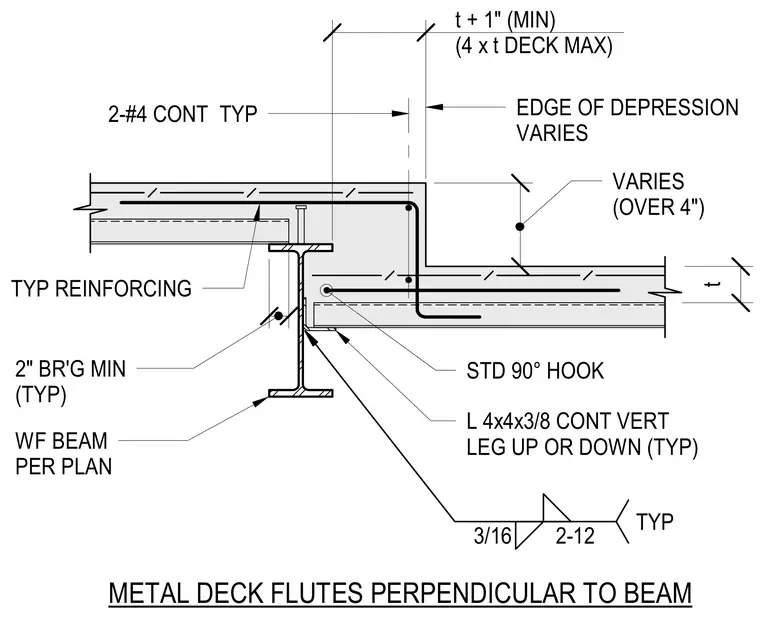

Metal deck flutes are oriented perpendicular to a wide flange beam per plan, accommodating a depression depth greater than 4 inches. Continuous reinforcing consists of two number 4 bars with standard 90-degree hooks terminating at the depression edge. A continuous 4x4x3/8 inch angle with vertical leg positioned up or down is provided. A minimum bearing of 2 inches is maintained typical, with a fillet weld size of 3/16 inch spaced at 12 inches typical.
METAL DECK FLUTES PERPENDICULAR TO BEAM 2-#4 CONT TYP TYP REINFORCING L 4x4x3/8 CONT VERT LEG UP OR DOWN (TYP) WF BEAM PER PLAN EDGE OF DEPRESSION VARIES STD 90° HOOK 3/16 2-12 TYP 2" BR'G MIN (TYP) t VARIES (OVER 4") t + 1" (MIN) (4 x t DECK MAX)
